Paper tube with lid

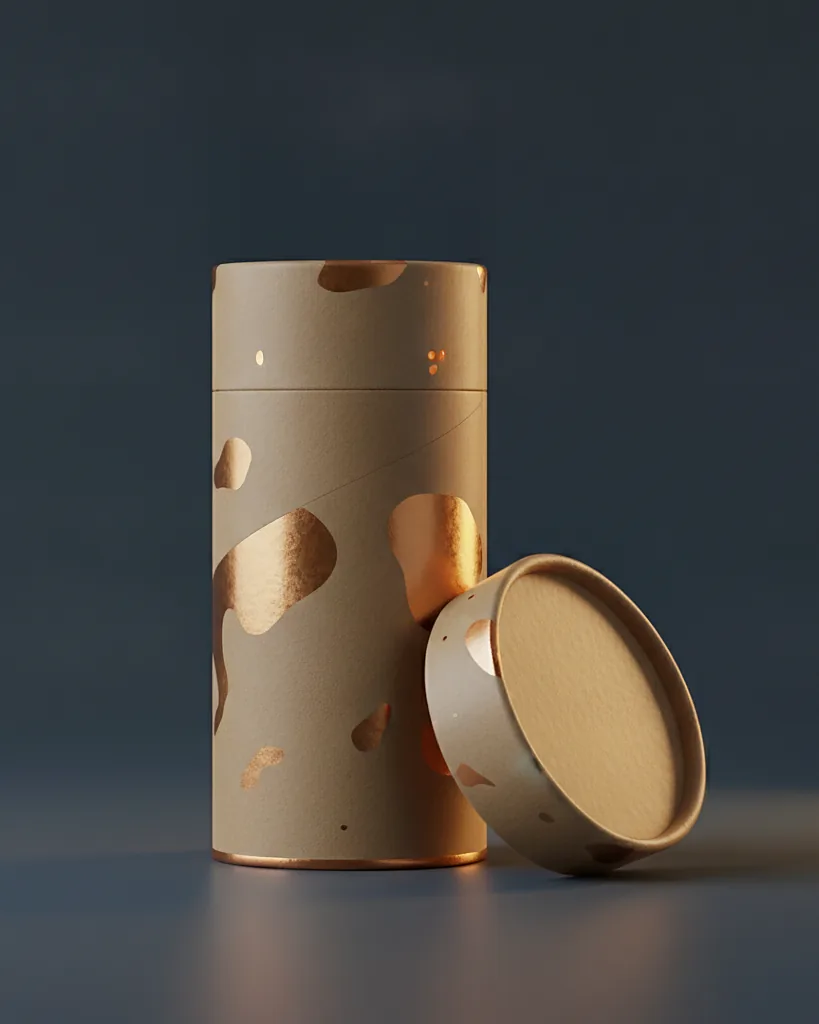

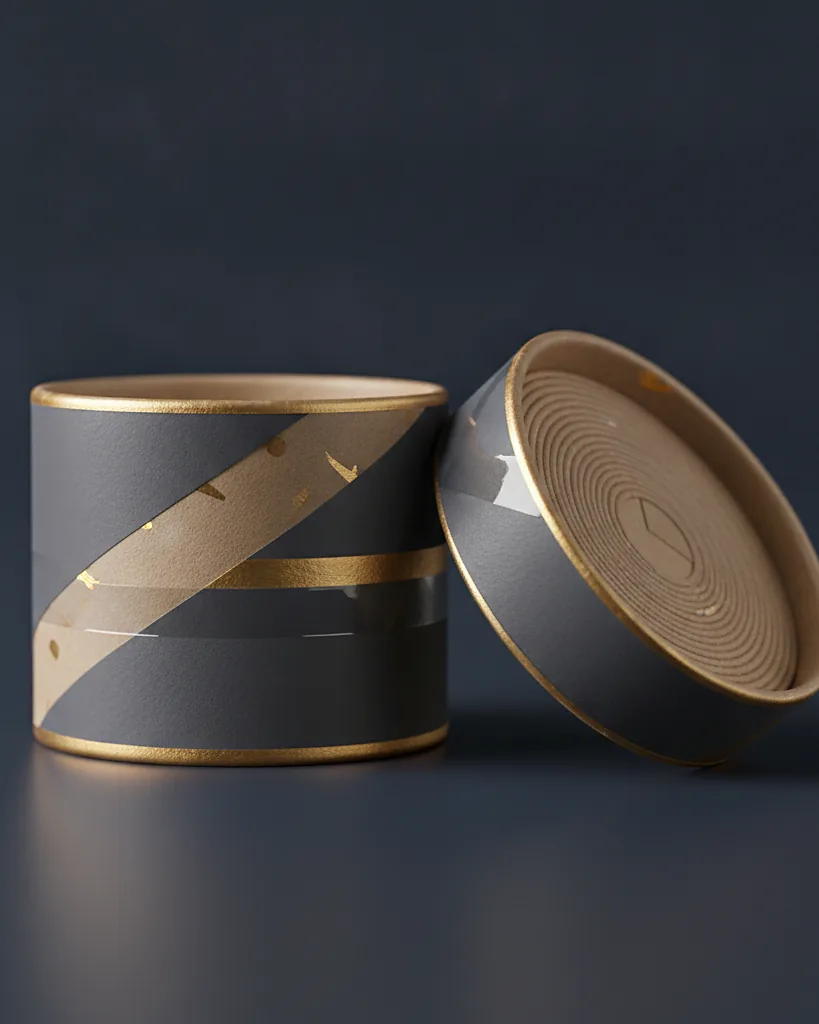

Spiral wound paperboard200 minimum · 10 to 14 business daysA paper tube with lid is a round spiral wound paperboard container with a separate slip-on cap, wrapped in a printed label or a full wrap. We produce them from 200 units in 10 to 14 business days after proof, in kraft or white board, from 1 inch to 5 inches in diameter. The 2 by 4 inch and 3 by 5 inch sizes suit most cosmetics, tea and gifts.
When to choose it, and when not to
Choose a paper tube with lid when a round product wants a round box: candles, bath salts, tea, deodorant sticks, roll-on oils, cocktail kits, socks and small gifts. A tube stands on a shelf without a hinge or a flap, opens with one hand, and the buyer keeps it. Kraft board with a one color print is the quickest and reads as natural; a full color wrap with foil on a white tube competes with a rigid box at a lower weight.
Choose a push up paper tube when the product is a stick that is applied straight from the container, since a lid tube is a box not a dispenser. Choose a magnetic closure box when the product is rectangular or needs a fitted insert with several cavities, because a tube only holds one thing.
Specifications
| Board | Spiral wound paperboard, 0.06 to 0.12 in wall, kraft or white liner |
|---|---|
| Digital or offset CMYK on a paper wrap, one color flexo direct on kraft | |
| Finish | Matte or gloss varnish, soft-touch lamination, foil, spot UV on the wrap |
| Closure | Slip-on lid, 0.75 to 1.5 in deep, paper or with a metal end |
| Insert | Die-cut paperboard collar or foam disc on request |
| Ends | Paper ends standard, tinplate ends on request |
| Minimum | 200 units |
| Lead time | 10 to 14 business days after proof |
| Ships | Assembled with lids on, in cartons of 50 to 200 by size |
| Sizes we run | 1.5 x 3 in (lip balm, deodorant stick) 2 x 4 in (bath salts, small tea) 2.5 x 5 in (candle, tea, cocktail kit) 3 x 6 in (bottle, roll-on set) 4 x 8 in (wine, tall bottle) any size from 1 x 2 to 5 x 14 in |
Materials that suit it
Questions people ask
How do I measure for a tube?
Measure the widest diameter of the product and its height, then add 0.125 inch to the diameter and 0.25 inch to the height. Sizes are inside dimensions. For a candle jar, measure across the lid, not the glass, since the lid is usually wider. Send us a photo beside a ruler if you are not sure and we size it.
Printed wrap or printed direct?
A printed paper wrap gives you full color, foil, soft-touch and an unbroken surface, and is the standard for retail tubes. Direct one color flexo on kraft board is faster and suits a logo and a line of text. Both run from 200 units; the wrap adds about two days.
How thick is the wall?
0.06 in for tubes under 2 inches in diameter, 0.08 in for most retail tubes, 1/8 in for tubes over 4 inches or anything heavy like a wine bottle. A thicker wall feels more like a rigid box and holds its shape when the lid is pulled off hard.
Can the lid be a different color from the base?
Yes. The lid and the base take separate wraps, so a black lid on a kraft base or a foil lid on a matte base is no extra process. A common approach prints the lid top with the logo alone and put everything else on the side.
Is a paper tube recyclable?
The board and paper wrap are recyclable as mixed paper. A tinplate end is recyclable as metal but should be separated first. A soft-touch lamination on the wrap is a thin plastic film; if full paper recyclability matters to your brand, choose a matte varnish instead.
How is a paper tube with lid different from a telescoping tube?
The paper tube has a short slip-on lid, 0.75 to 1.5 inches deep, on a 0.06 to 0.12 in wall in kraft or white, printed on a paper wrap or direct, from 200 units in 10 to 14 business days after proof. The telescoping tube has a lid that slides the full depth of the base, so the closed tube shows one clean printed surface, on a 0.08 or 0.12 in wall with premium wraps, from 200 units in 12 to 14 business days. For candles, bath salts and tea, the tube with lid. For spirits, fragrance or a premium gift, the telescoping tube.
Similar styles
Read next
Ready to price your paper tube with lid?
Send the size and quantity for a quote and a dieline, usually within one business day. Your digital proof follows, usually within one business day of your artwork. Design help and the Swatch Book of materials are free.
